Graphing Athlete Data for an Activity

How to graph Athlete data

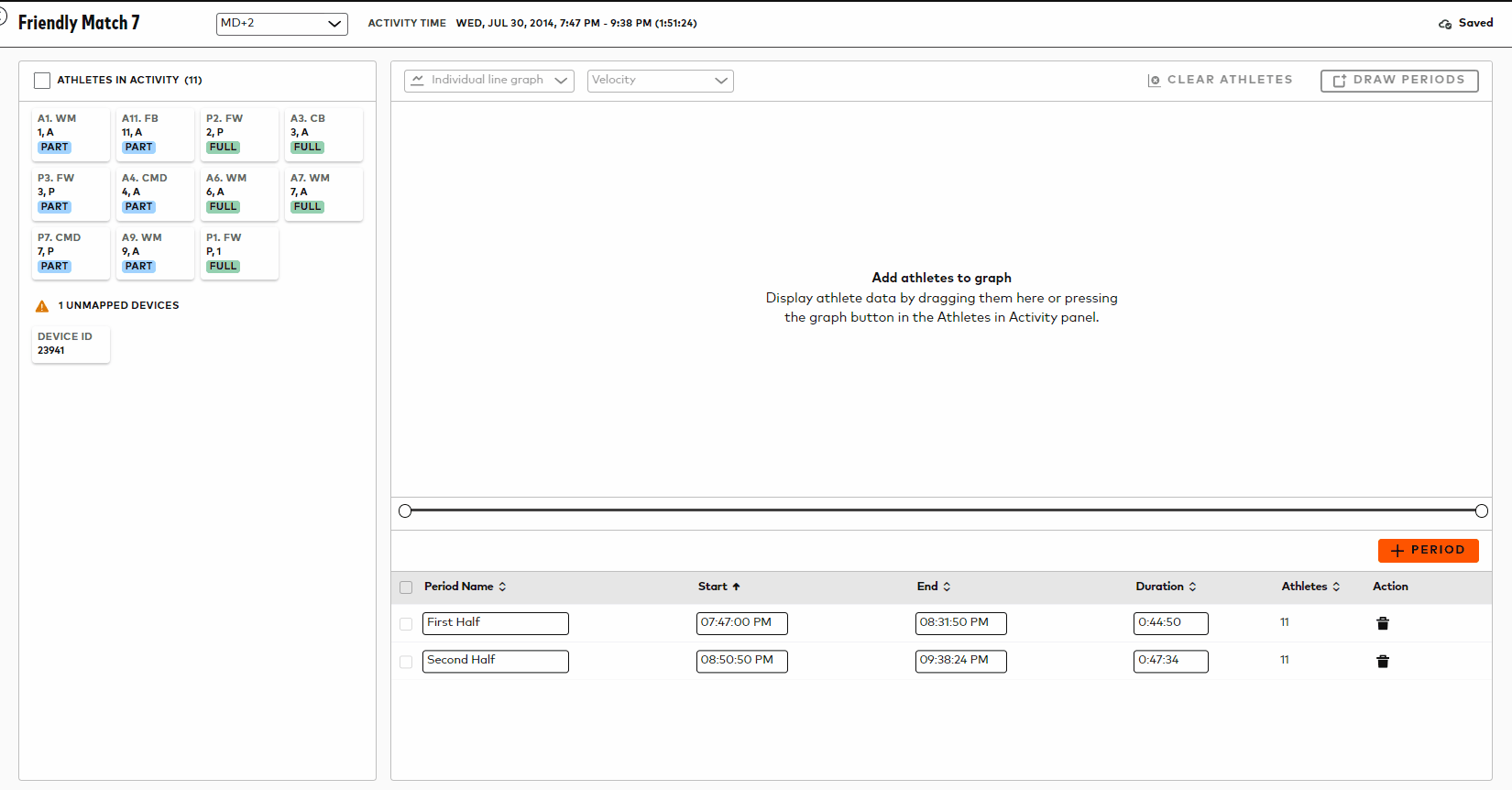

1. In the OpenField Cloud, load the desired activity in the Editor page.
2. Select desired Athletes to graph from the Athletes in Activity panel.

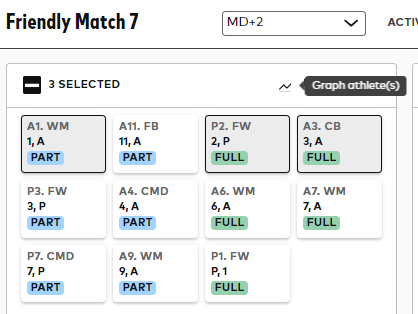

3. Athlete data can be graphed by clicking the Graph athlete(s) button at the top of the Athletes panel.


   Note: when graphing using the Graph Athlete button, any existing graphs will be cleared and replaced with the selected Athletes.
4. Athlete data can also be graphed by clicking and dragging selected Athletes' cards onto the graphing window.


   Note: when graphing Athletes by clicking and dragging Athlete cards, any existing graphs will remain and any new Athletes will be added to the graphing window.

Graph Types, Parameters and clearing graphs

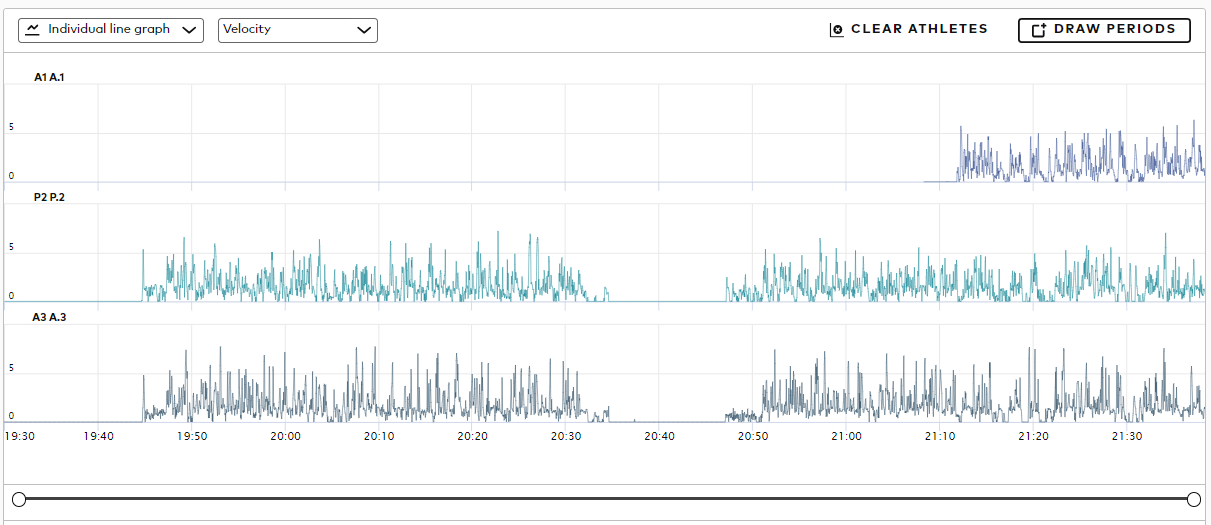

• Users can toggle between an individual line graph and an overlapping line graph using the dropdown in the graphing tool bar.

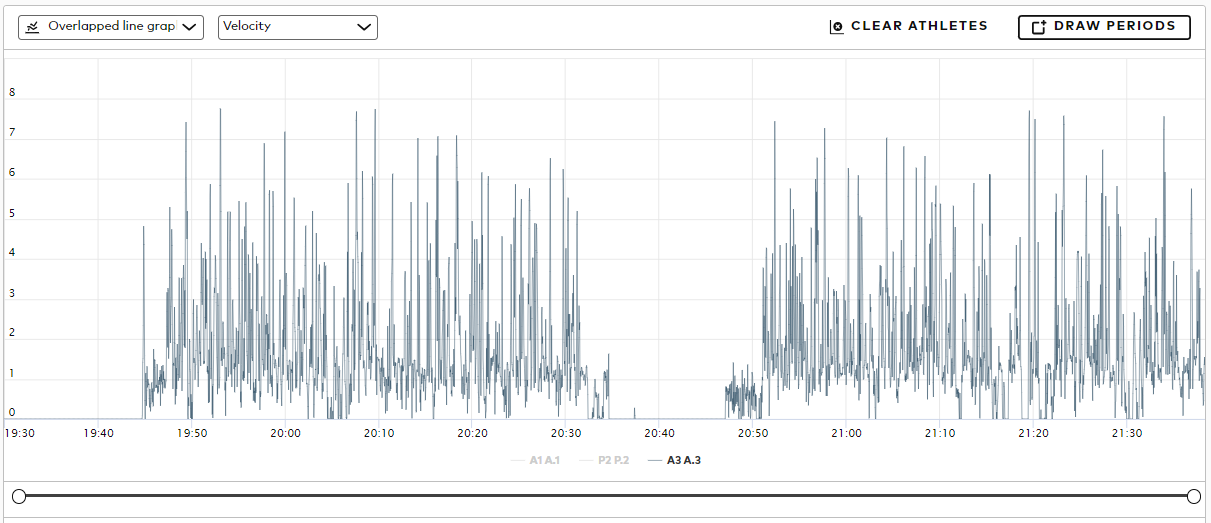

• When overlapping is selected, the Athletes' names in the graph legend can be clicked to hide or unhide that Athlete's graph. In the below example only Athlete 3 is selected:

• 3 Parameters can be graphed - Velocity, Player Load and Heart Rate, and can be toggled from the parameter dropdown.

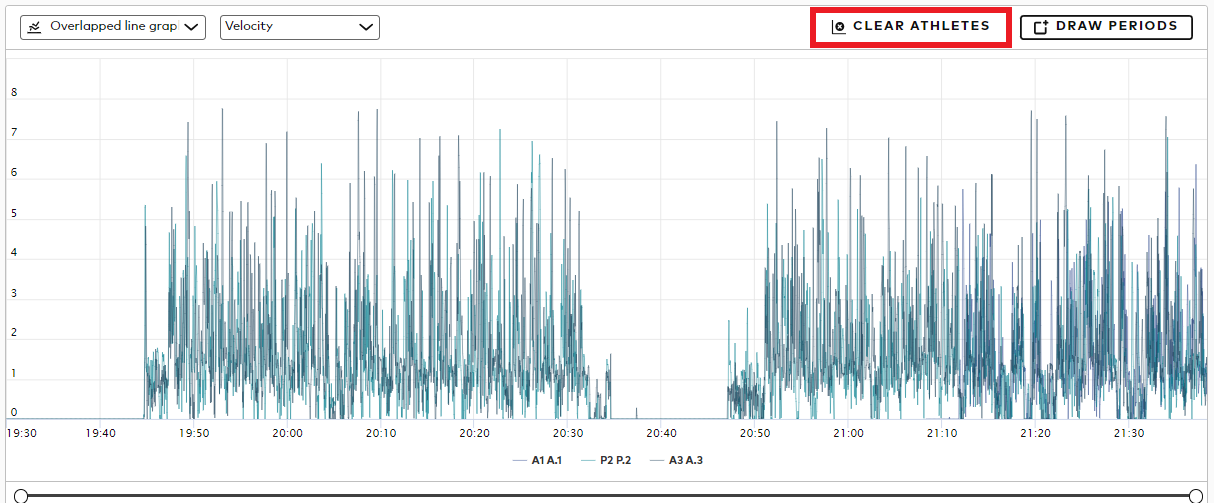

• All graphs can be cleared by clicking the Clear Athletes button.
