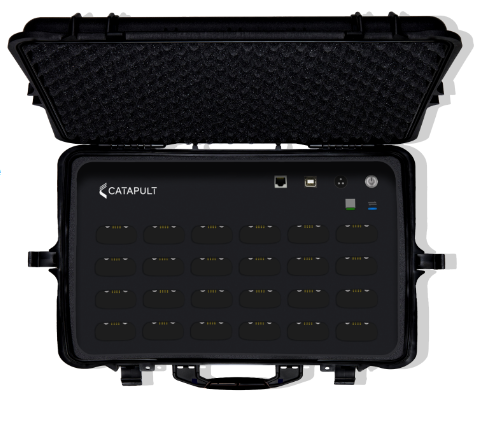

Vector X7 Dock Hardware Overview
- 24 Vector X7 Device slots, per dock
- Multi-Dock support

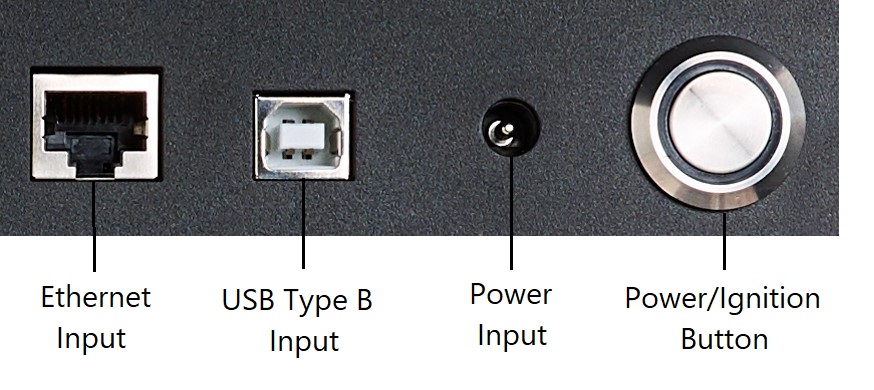

- Ethernet Input for data transfer and network connectivity
- USB Type B Input for data transfer
- Dock Power Source Input for powering the dock
- Dock Power Button for ignition
- Dock Battery status LED. For more information on Dock LED Behaviour, please see our article Vector Dock LED Behaviour
-
Network Indicator LED. For more information on Dock LED Behaviour, please see our article Vector Dock LED Behaviour
Vector Dock Functionality
-
Device 'Ignition' functionality
The user can turn on or off all devices before or after an activity with a single button press of the Vector Dock Power/Ignition button. For more information on how to use this functionality, please see our Vector Dock - Device Ignition/Quick Start Feature article. -
Pitch-side ignition and uploading on battery
The Vector dock can operate on battery only. This enables the user to use the device 'ignition' functionality and to upload data pitch-side without having to connect the dock to a power source. -
Removable from Travel Case
The Vector dock can can be removed from the Vector Dock travel case. This allows for easy transportation for pitch-side ignition and data uploading. -
120 min Battery Life
With all 24 devices connected to the Vector Dock, the Vector Dock battery will last for 120 minutes. For more information on the Vector dock battery life, please see our Charging the Vector Dock article. -
Battery Saving Mode
The Vector Dock will automatically shut down after 60 minutes (dock firmware version 7.5 or higher), regardless whether it is being used to upload data from the devices or not.Note: Data will automatically upload when the dock is next turned on. -
Multi-Dock support
Vector Core enables the users to use a maximum of 3 Docks and 72 wearable devices per Vector Core account, in post activity workflows (Vector Core version 1.2.9 or higher)
Vector Dock Travel Case Overview
- Contains compartments to store the Vector dock and cables
- Contains zip pockets for easy access to stored items
- Foam inserts provide protection for devices and dock during travel
