Vector X7 Device Overview

Vector X7 Key Features

• GPS/GNSS Tracking, 10Hz Multiple Constellations
• Heart Rate Capability (Polar 5.5kHz Heart Rate Module Required)
• Accelerometer 3D +/- 16G. Sampled at 1kHz, Provided at 100Hz
• Gyroscope 3D 2000 degrees/second @ 100Hz
• Magnetometer 3D ±4900 μT @100Hz
• 6 Hour Battery Life
• Bluetooth Communications to Catapult Vector App

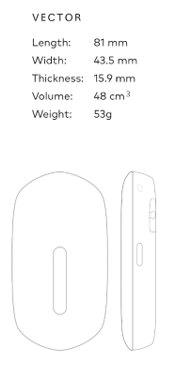

Vector X7 Physical Features and Dimensions

For more details see also:

• Vector Device LED Behaviour
• Charging Vector Devices with the Vector Dock
