Where are the LEDs on the Vector Device?

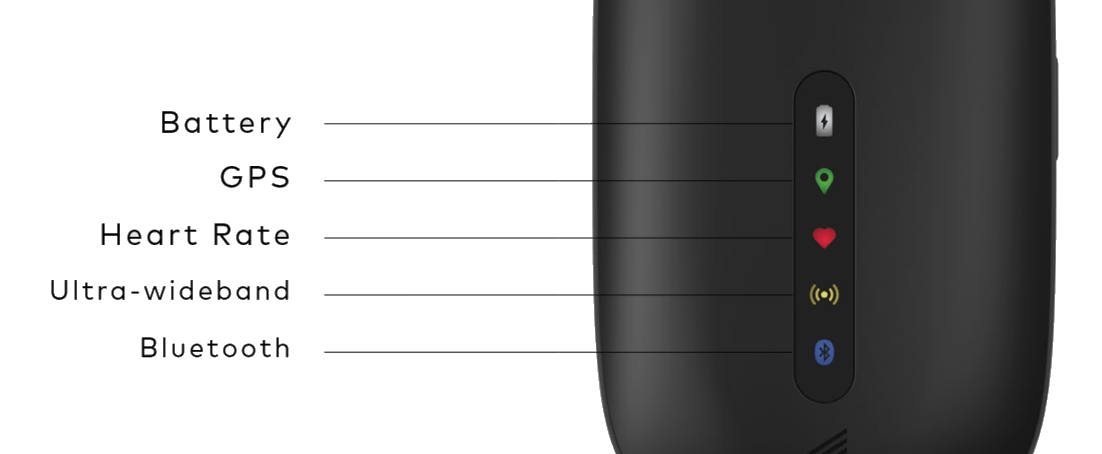

A Status LED Bar is located on the front of the Vector device
A Charging Light is located on the top of the Vector device

For more information on how to charge Vector devices, please see our article Charging Vector Devices with the Vector Dock

What does each LED on my Vector Device mean?

Battery LED

Indicates the battery level of the device

White = Battery level > 30%
Red = Battery Level < 30% (approx. 2 hours of battery life remaining)
Flashing Red = Battery Critically Low <10% (approx. 40 minutes of battery life remaining)

GPS LED

Indicates an active connection to GNSS System

Solid Green = Active connection the GNSS System
Flashing Green = Device is searching for GPS lock

Heart Rate LED

Indicates an active connection to Heart Rate
For more information on Heart Rate Monitor Compatibility please see this guide.

Red = Active connection to Heart Rate
Flashing Red = Device is searching for Heart Rate

Ultra-wideband LED *

Indicates an active connection has been established to a Vector Receiver (* not applicable to Vector Core)

Solid Amber = Indicates an active connection has been established to a Vector Receiver
Flashing Amber = Device is searching for a Vector Receiver to join

Bluetooth LED

Indicates an active Bluetooth Connection has been established

Solid Blue = Active Bluetooth connection is established
Flashing Blue = Device is searching for a Bluetooth connection

Device charging LED status

When a Vector Device is connected to the Vector Dock and connected to a power source, the Charging Light indicator will illuminate Red when charging and will turn Green when the Device is fully charged.
When the Vector Device is plugged into the Vector Dock that is NOT connected to a power source, the Charging Light will NOT be illuminated, indicating the device is not charging.

Charge Level LEDs

On request, an alternative LED configuration for your device LEDs can be enabled. This will allow a higher level of feedback on the charge status of the device. When this mode is enabled, the tag will show the following patterns on the battery LED.

Solid Green - Device is connected and has greater than 80% charge
Solid Amber - Device is connected and has between 40% (approx. 2 hours) and 79% charge
Solid Red - Device is connected and has less than 39% (approx. 2 hours) charge

In dock ignition mode and data transfer LED status

Ignition mode is a feature that is standard in all Vector model devices, that enables the automated power on of a device, when removed from the Vector Dock.

When the Vector Device is inserted into the Vector Dock (that is powered on), the GPS LED will illuminate Solid White. This indicates the Device has connected successfully with the Dock and is in ignition mode.
The GPS positional indicator will not illuminate white if the device has failed to connect to Vector Dock. Please reconnect the device and wait for the LED to show a successful connection.
