Once you have set up your Vector Dock(s) and mapped devices to Athletes you can run a Live Activity in the Catapult Vector App.
To Run a Live Activity

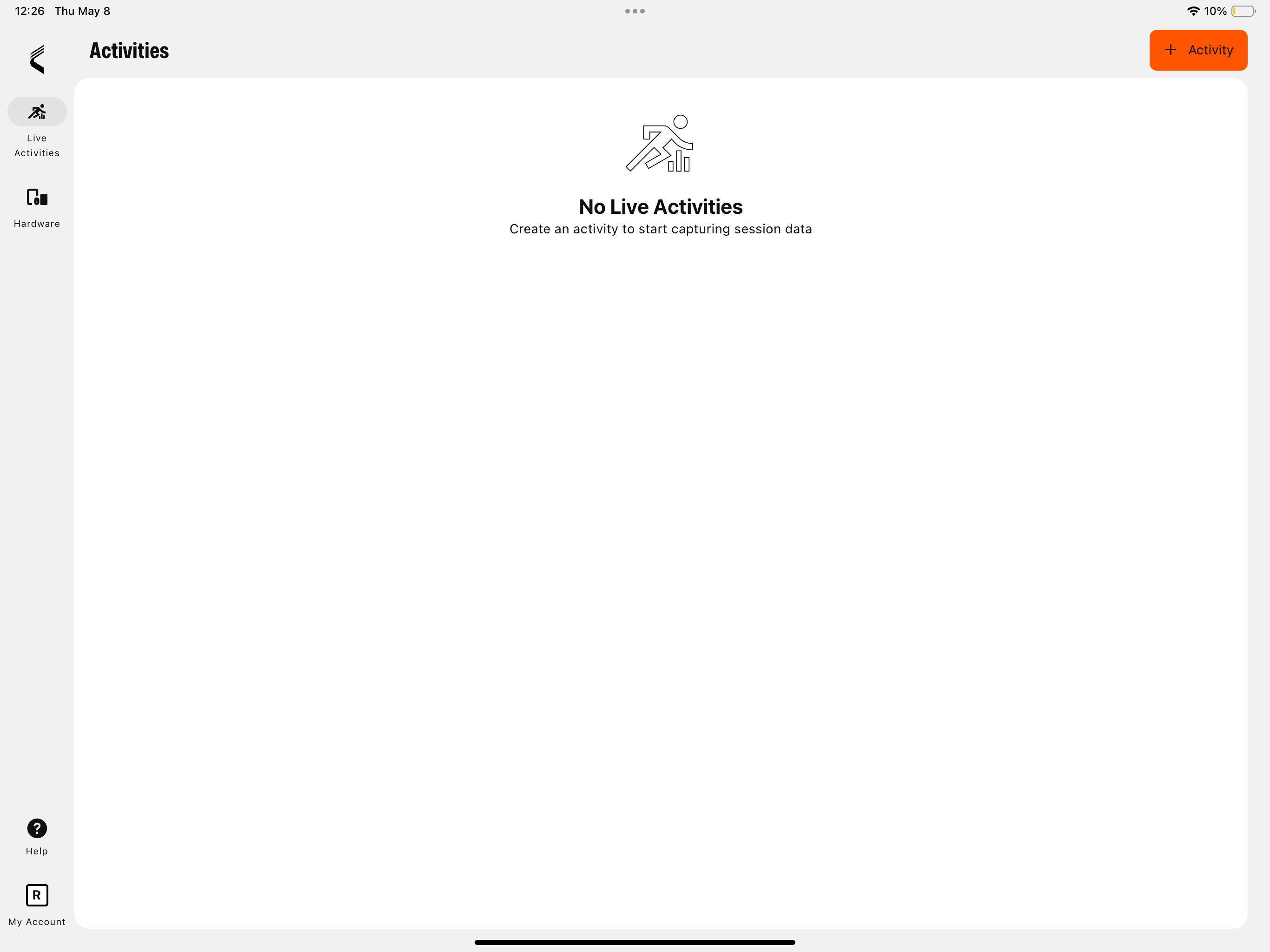

- Turn on devices and open Catapult Vector App, making sure that Bluetooth is enabled.
- You will see the number of found devices on the Activity page.

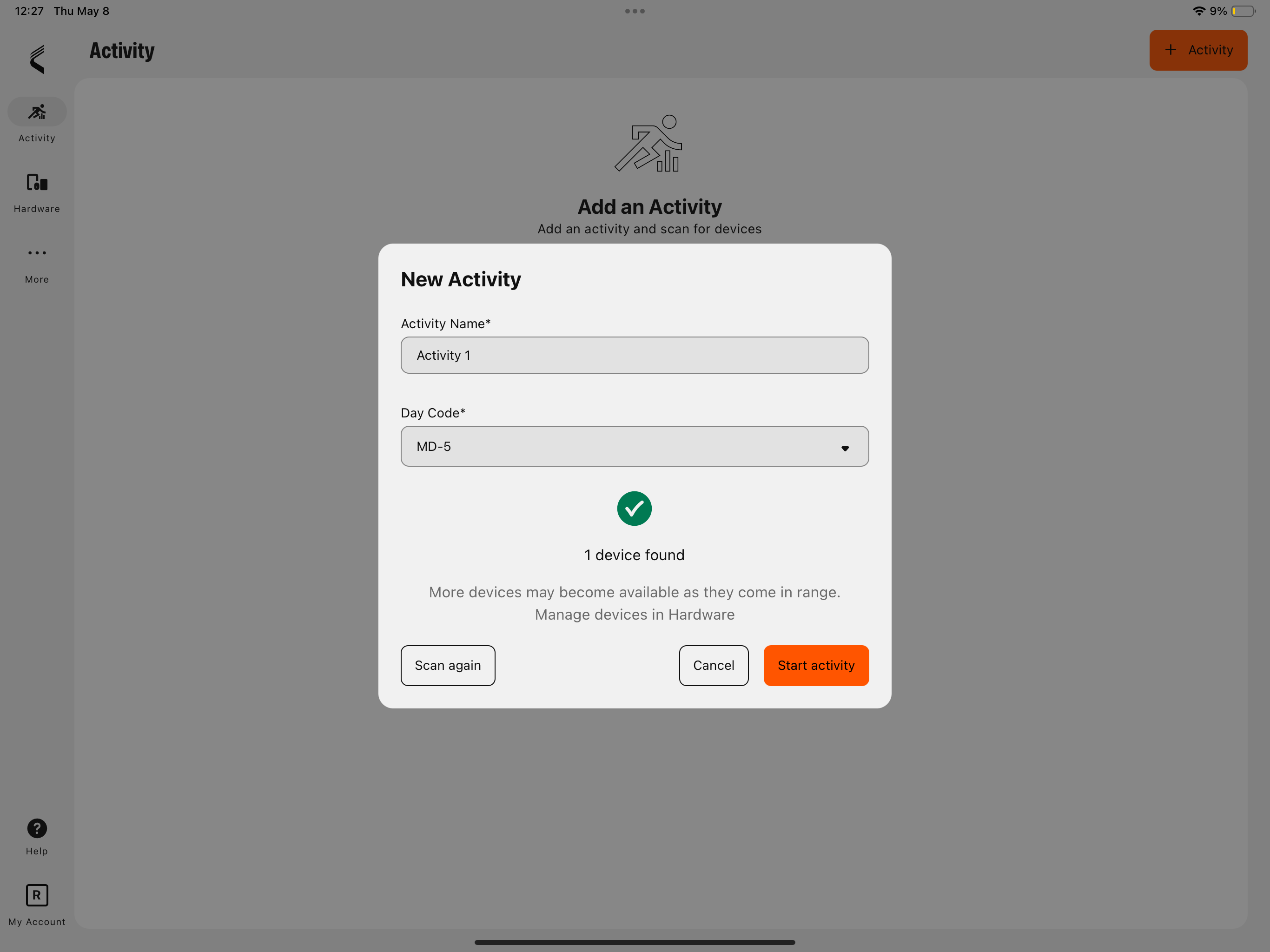

- Press the orange Start With # Devices button to enter activity details.
- The Activity Name populates automatically but can be edited if preferred.
- Select a Day Code from the dropdown, then press Start.
- Activity will start automatically.
- When you are ready to create a period, press +Period in the bottom right-hand corner.
- Select the Athletes participating in that portion of the activity, either individually or by ticking Select All, whichever is relevant.
- Once selected press +Athletes.
- Press the Ellipsis
button in the top right-hand corner to edit the period name, then press Save.
Note: you can also Delete a period in the Edit Period screen. - Select the dropdown next to the period name to look at specific periods or the activity as a whole.
- To End a Period, press the Stop button in the bottom right-hand corner, and select Yes to confirm.
- Follow steps 7-12 above to add a new period.
- Athletes can be moved in and out of periods by pressing the Person+
button.
- Targets can be set by pressing the Bullseye+
button.
For more information go to How to Set Targets in the Catapult Vector App - Turning on Target Mode will display colour coded notifications when Athletes approach and then exceed the targets.

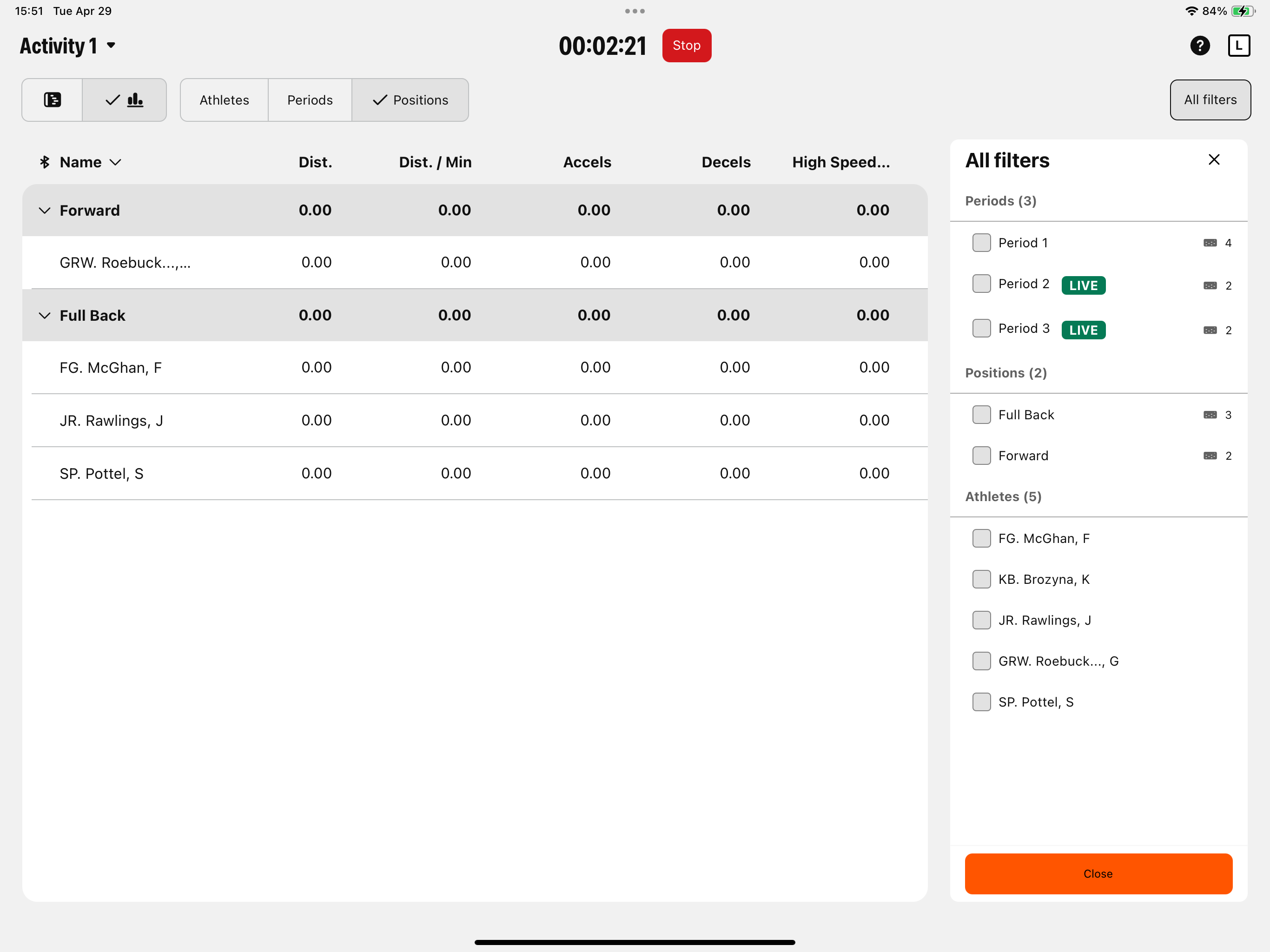

- The parameter sliding bar can be used to view parameters of interest.

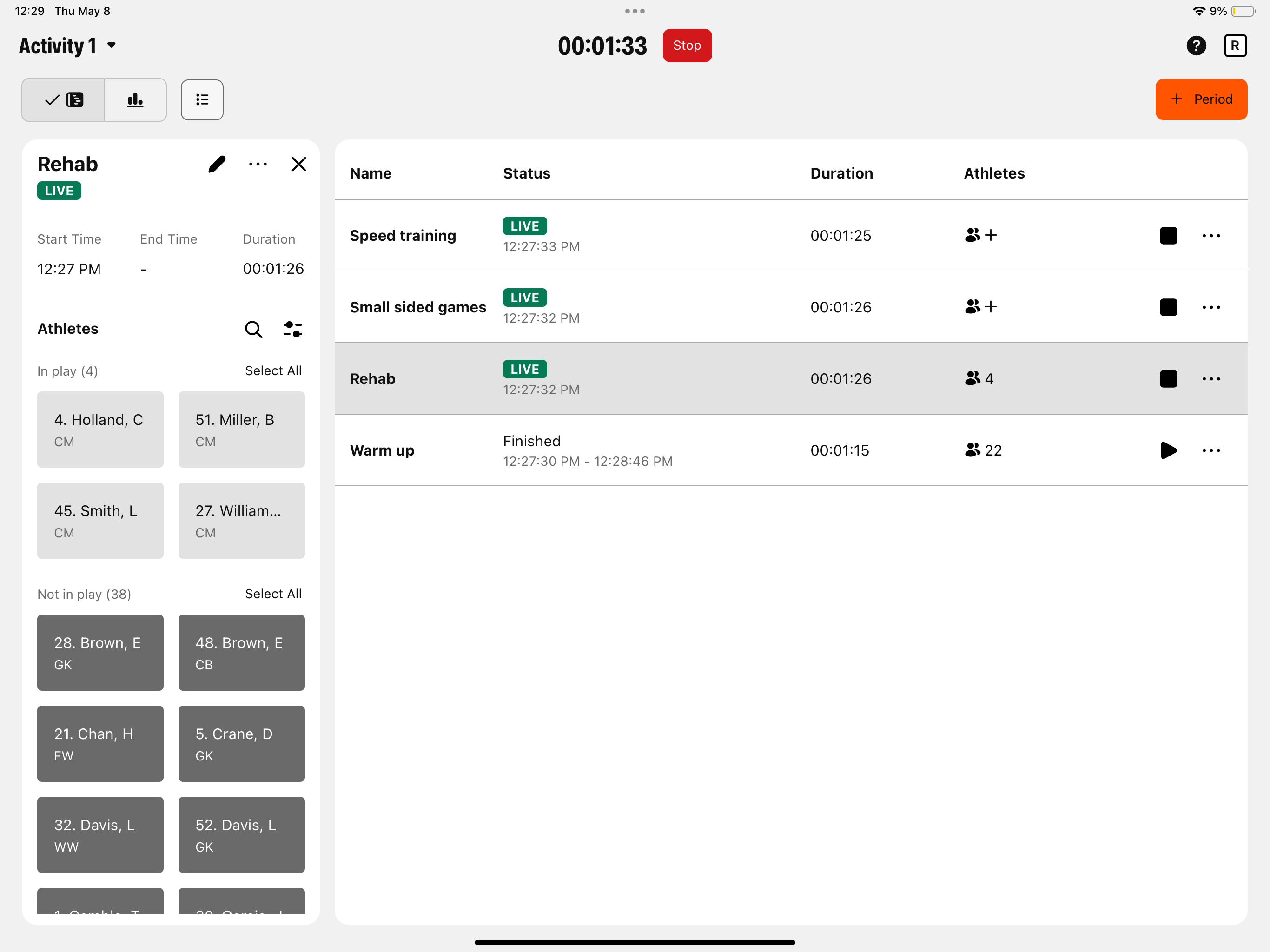

- Periods with Active Athletes can be seen through the Activity page.

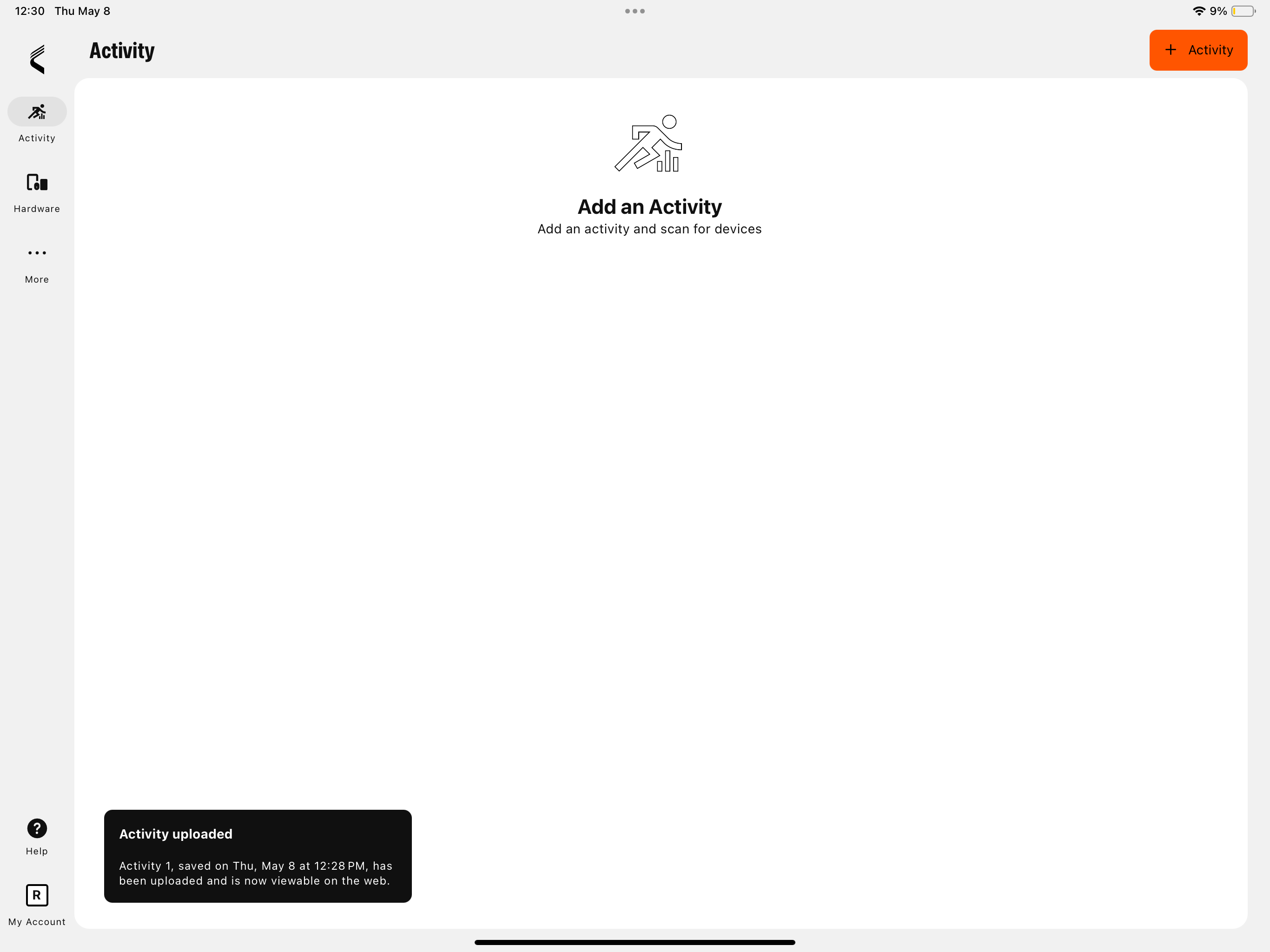

- To end the activity, press End Activity on the Activity page, then select End & Save.

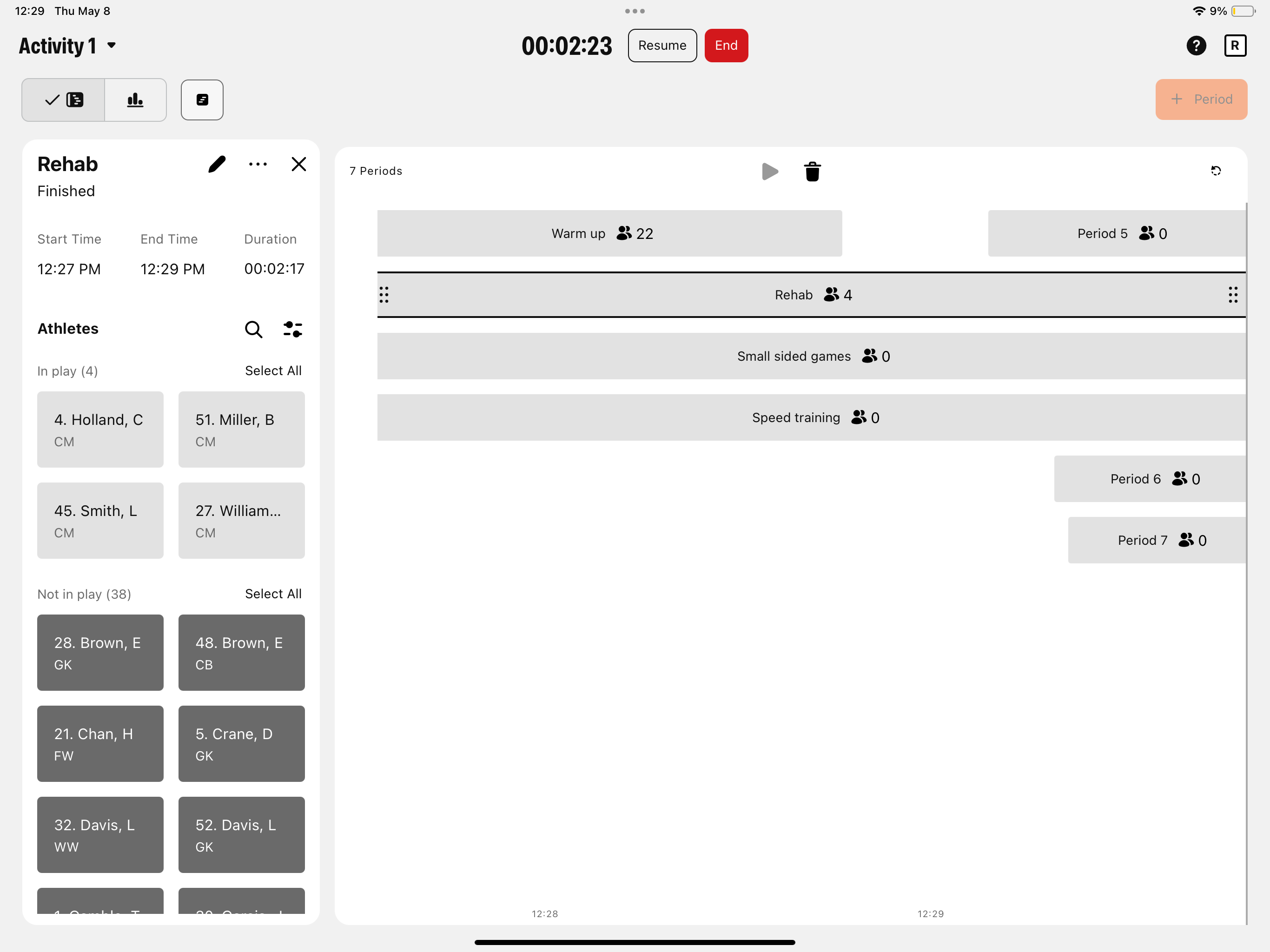

- Review the data by the Full Activity, Activity with Athletes, or by Period.
Note: you can click on the individual periods or use the dropdown next to the period name. - Press End Review once completed and select Yes to close the activity.
